The cushion is not included — your existing cushion clips into this frame as normal, or order one separately.
Frame, Headgear & Elbow Refresh for Your Existing CPAP Mask

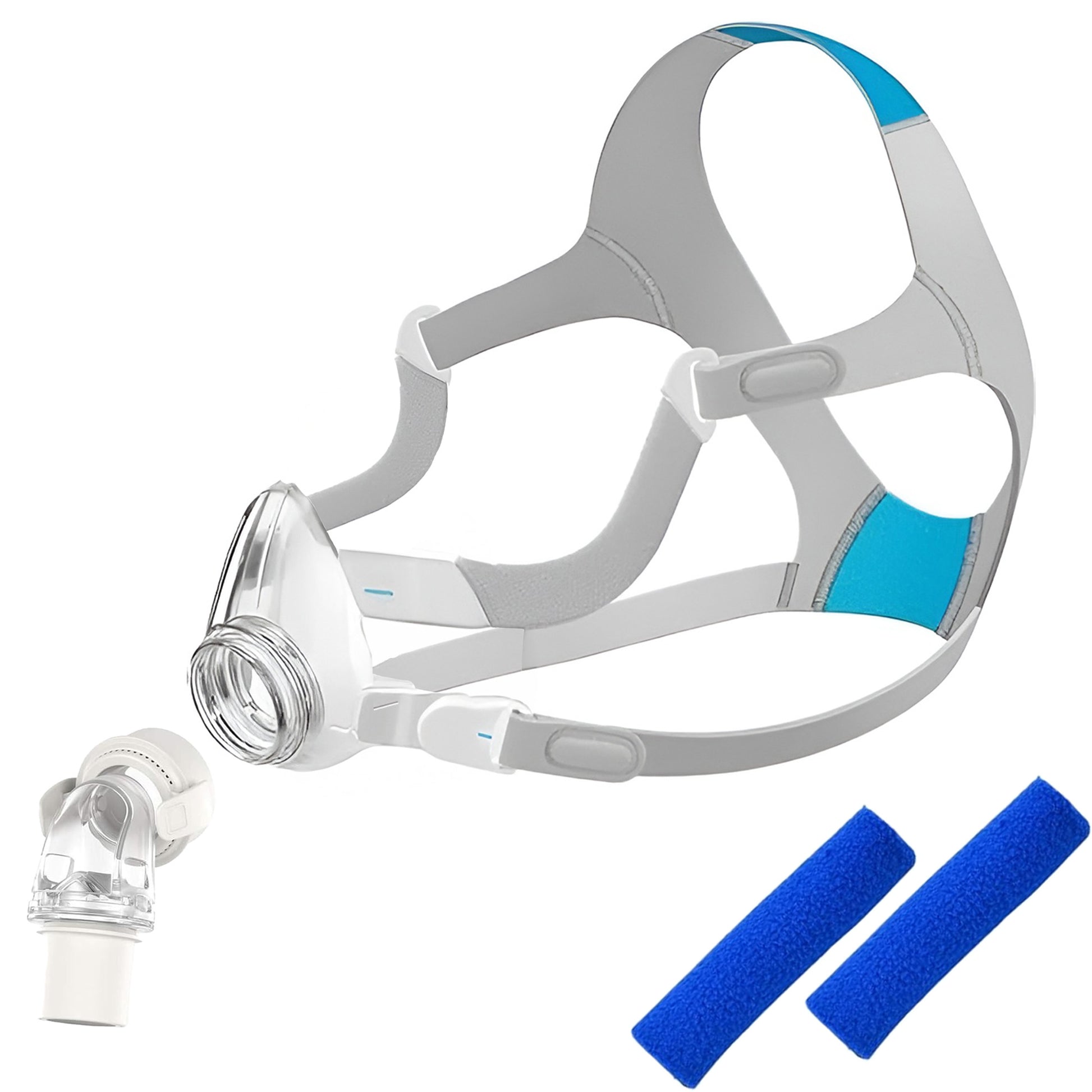

The ResLab Frame & Headgear Kit is a replacement set designed to refresh a full face CPAP mask compatible with the ResMed AirTouch™ and AirFit™ F20. It includes the frame, headgear, quick-release elbow, magnetic clips and strap covers — everything except the cushion.
This is the kit to choose when your cushion is the newest part of your mask. If you replaced the cushion recently and the leak came back anyway, it isn't the cushion at fault: stretched headgear, a cracked frame or a stiff elbow will all break a seal that a perfectly good cushion is trying to hold. Replacing those and keeping the cushion you already paid for is the cheaper fix.

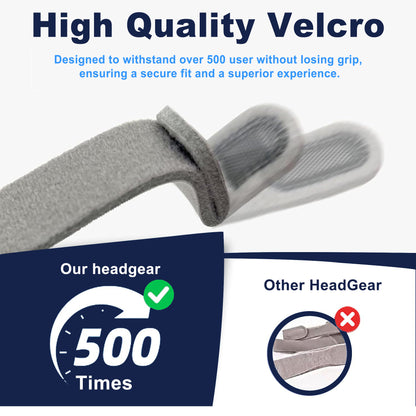

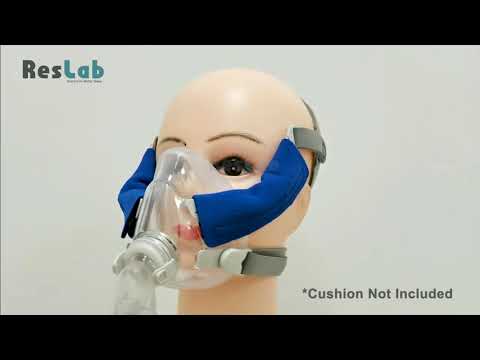

The soft, breathable headgear distributes tension evenly, the strap covers sit between the straps and your skin to reduce pressure marks, and the magnetic clips let you take the mask on and off without undoing your settings. Everything assembles without tools.
*This kit contains magnetic headgear clips. Please read the magnet safety notice below before use.
| Specification | Details |
|---|---|
| Brand | ResLab |
| Product Name | ResLab Frame & Headgear Kit (Without Cushion) for AirTouch™ / AirFit™ F20 |
| Product Type | CPAP Mask Replacement Kit |
| Part Category | Compatible Replacement Kit — not manufactured by ResMed |
| Mask Type | Full Face CPAP Mask Components |
| Compatible With | ResMed AirTouch™ F20 & AirFit™ F20 Full Face CPAP Masks |

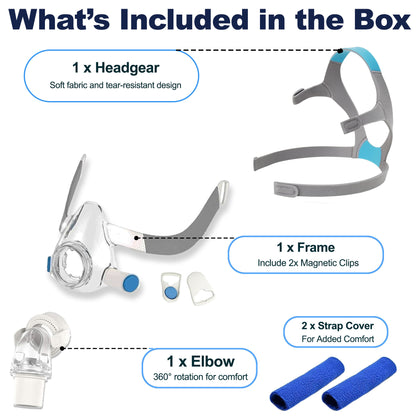

| Included Components | Frame, Headgear, Quick-Release Elbow, 2 × Magnetic Clips, 2 × Strap Covers, User Manual |
| Cushion | Not included — uses your existing cushion, or order separately |
| Available Headgear Sizes | [CONFIRM: Standard / For Her] |

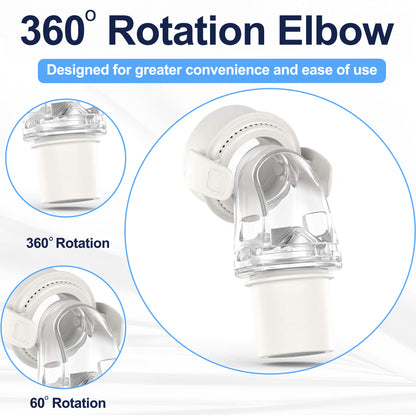

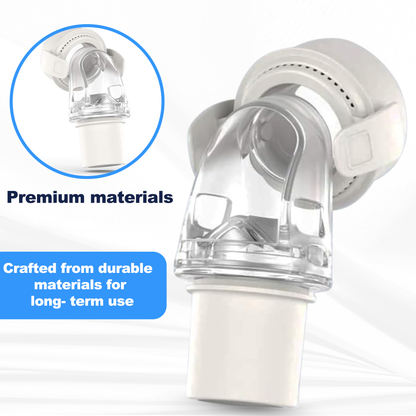

| Elbow Type | 360° Swivel Quick-Release Elbow with Exhalation Vent |

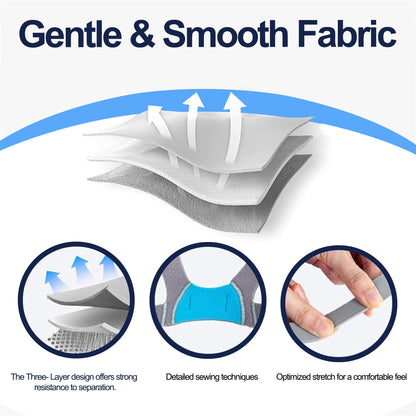

| Materials | Soft Fabric (headgear), Durable Plastic, Silicone, Fleece (strap covers) |
| Magnetic Components | Yes* — 2 magnetic headgear clips |
| Minimum Magnet Distance | Keep at least 50 mm from implanted or magnetically sensitive devices |
| Latex Free | Yes |
| Reusable | Yes |
| Washable | Yes — all components, warm water and mild soap |
| Recommended Headgear Replacement | Every 6 months, or sooner if the straps stop holding adjustment |
| Installation Type | Tool-Free Assembly, 4 steps |
| Usage | CPAP / APAP / BiPAP Sleep Therapy |
| Intended Use | Components of a full face mask for the treatment of Obstructive Sleep Apnoea (OSA) in Adults |
| UK Responsible Person | Techo Info Ltd, Eastleigh, UK (Company Reg No. 15021828) |
| EU Authorised Representative | APEX CE Specialists, Lyon, France |
The kits differ by which part they leave out. Work out which parts of your mask are newest, and choose the kit that replaces the rest.
Frame · Headgear · Elbow · Clips · Strap covers
Choose this if your cushion is recent but the leak came back anyway — stretched straps, a cracked frame or a stiff elbow are the usual culprits.
Cushion · Headgear · Frame · Clips · Strap covers
Choose this if your elbow is fine but everything else is tired. The most complete refresh of the range.
Frame · Cushion · Elbow
Choose this if your headgear is still holding its tension and you only need the parts it holds.
Cushions · Headgear · Frames · Elbows, sold singly
Choose these if only one part has failed, or you want a spare in the drawer.
Still unsure? Browse all compatible F20 parts, or get in touch and tell us how old each part is — we'll tell you which kit fits.

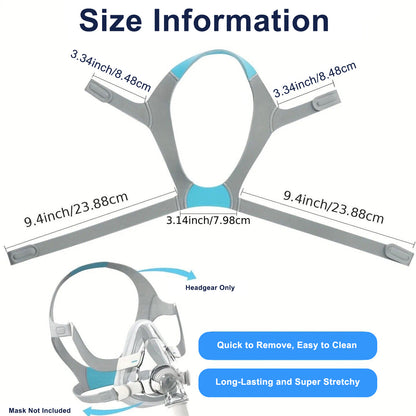

The headgear is the sized component in this kit — the frame, elbow, clips and strap covers are one size. The difference is the cut of the straps, not the mask they fit.
Mask parts are not interchangeable between families — frame fittings, strap lengths and vents all differ. Check the model printed on your existing frame before ordering, and if you're unsure, ask us first.
Four steps, no tools. The illustrated version is in the user manual supplied in the box.
Slide the strap covers onto the lower straps before fitting if you want them in place from the first night. Check all connections are properly assembled before each use. Improper assembly may affect therapy or result in injury — if your cushion will not snap in evenly, stop and check it is an F20 cushion and that the frame is the correct way up.
New headgear holds far more tension than the stretched set you're taking off, so your old settings will be much too tight. Start from scratch.
The cushion isn't in this kit. If yours is more than a couple of months old, add one — it's the part that actually seals.
As specified in the ResLab user manual supplied with the kit. The hard parts and the fabric parts are cared for differently.
If your cushion is still in good shape but the frame, headgear, elbow or clips have worn out, replacing everything at once isn't necessary. This kit bundles the frame, headgear, quick-release elbow, magnetic clips and strap covers into one convenient, cost-effective set — restoring stability and comfort to your existing mask without paying for a cushion you don't need. It's the only ResLab F20 kit that leaves the cushion out, which makes it the sensible choice if you replaced yours recently and the leak came back anyway.
This kit contains magnetic headgear clips. The magnetic field may interfere with implanted metallic or electronic medical devices and with some metallic implants. Keep the clips at least 50 mm (2 inches) away from any such device at all times — including when handling, storing or drying the headgear.
Consult your doctor before use if you, or anyone who shares your bed or helps you fit the mask, has any of the following:
This is not a complete list. If magnets are contraindicated for you, contact us before ordering — non-magnetic full face mask options are available. Keep the clips away from bank cards, phones, laptops and other magnetically sensitive items.
The elbow in this kit carries the mask's exhalation vent, which is how the air you breathe out leaves the mask. This is a safety-critical part of how a CPAP mask works, not an optional feature.
This is a ResLab replacement product and is not manufactured by ResMed. It is designed to be compatible with the ResMed AirTouch™ and AirFit™ F20 full face CPAP masks, used as part of a complete mask system for the treatment of obstructive sleep apnoea. This kit does not include the cushion — it must be purchased separately, and a complete, correctly fitted cushion is required for the mask to work.
As stated in the supplied user manual:
Please verify your mask model before purchasing. Ensure all components are properly assembled before use and check regularly for wear and damage. If you notice persistent leaks, discomfort or any change in mask performance after fitting, discontinue use, refit your original parts if you still have them, and consult your CPAP provider or healthcare professional.
Disposal and the environment. Do not dispose of this product with household waste. Dispose of it in accordance with local regulations for medical devices. The packaging materials are recyclable.
UK Responsible Person: Techo Info Ltd, 1 George Wright Close, Eastleigh, SO50 5SJ, United Kingdom. Company Registration No. 15021828.
EU Authorised Representative: APEX CE Specialists, 64 Rue Waldeck-Rousseau, 69006 Lyon, France.
Trademark and compatibility. AirFit™, AirTouch™ and ResMed™ are trademarks of ResMed Ltd. This product is a compatible replacement kit manufactured by ResLab and is not manufactured, distributed, endorsed by, or otherwise affiliated with ResMed Ltd. All references to ResMed product names are made solely to identify the mask systems with which this kit is designed to be compatible. Fitting a compatible part may affect any remaining manufacturer warranty on your mask system — check with your supplier or clinician if this matters to you.
